Exit Device - CM500 Series

Panic Push Bar Exit Device

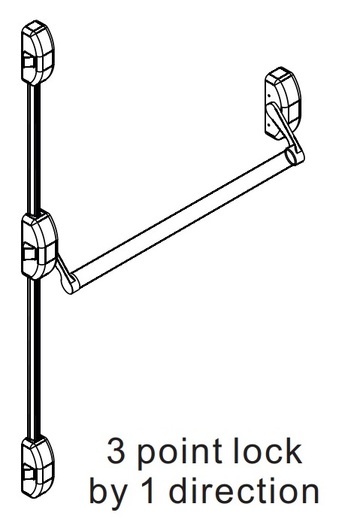

ER-CM510

1327

500 Series

CM500 series
1. CE mark, fire rated
2. EN1125 and EN1634 approved
3. None handed
4. Pullman latch and lateral latch design
6. Modular design, more than 4 point locks are available 7. Material: stainless steel or steel powder coating
8. Difference finish is available

Category of use	Durability	Door Mass	Suitability for use on	Safety fire/smoke doors	Corrosion resistance	Security	Project of horizontal bar	Type of horizontal bar operation	Field of Door application
3	7	6	B	1	4	2	2	A	A

Feature	ER-CM501	ER-CM505	ER-CM506	ER-CM507	ER-CM508	ER-CM509	ER-CM510	ER-CM511
Lock Point	1	1	2	2	3	4	3	4
Push Bar	1,000mm length
Door Style	Single and double door				Single door		Single and double door
Max. Door Weight	200kg.
Dogging Device	N/A
Security Anti-thrust latch	N/A
Door Width*	up to 1,500mm
Door Height*	2,133mm
Door thickness*	50mm

*Note: if the door width, door height and door thickness is outside of the specification, the order should mark the special requirement.

FOB Kaohsiung, Taiwan
T/T Payment
MOQ 168 sets
