E Motorcycle_SRRT Series
E MOTORCYCLE
ER-SRRT-GT73Pro
4

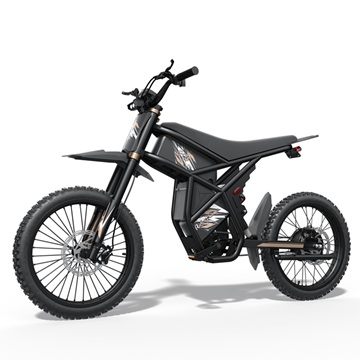

ER-SRRT-GT73Pro Electric Dirt Bike
— Product Specifications
📌 Product Title & Overview- Product Name: GT73 Pro Electric Dirt Bike (Adult Model)
- Tagline: Ultimate Performance & All-Terrain Off-Road Electric Dirt Bike
- Manufacturer: Shenzhen Riding Robot Technology Co., Ltd.
⚡ Key Highlights / Selling Points- Dual Quick-Release Battery System: Equipped with twin 60V 18Ah (21700 cells) removable battery packs for extended distance and flexible charging.
- Massive Range: Up to 140 km in Pure Throttle Mode / up to 280 km in Pedal Assist (PAS) Mode.
- High-Power Performance: Peak 3000W output delivering speeds up to 73 km/h (45 mph).
- Advanced Off-Road Suspension: All-aluminum inverted front fork with thru-axle and heavy-duty 1800 lbs rear coil shock absorber.
- Triple Safety Braking: Front & Rear Hydraulic Disc Brakes + Electronic Motor Cut-off Brake System.
- Smart LED Cockpit Display: Multi-function digital display with full lighting controls (headlight, taillight, and integrated turn signals).
📐 Technical Specifications TableCategory Specification Details Model GT73 Pro (Adults Model) Motor Power 3000W Peak / High-Performance Vector Controller Battery Capacity 60V / 36Ah Total (Twin 60V 18Ah Quick-Release Packs, 21700 Cells) Top Speed 1-3 Speed Modes:
• ECO (Level 1): 25 km/h (15 mph)
• STD (Level 2): 45 km/h (28 mph)
• TURBO (Level 3): 73 km/h (45 mph)Maximum Range • Pure Throttle: up to 140 km
• Pedal Assist (PAS): up to 280 kmTransmission / Drivetrain 7-Speed Shimano Derailleur / 5 PAS Levels Riding Modes Thumb Throttle & Pedal Assist (PAS) Coexistence / Push Mode / BOOST Mode Brake System Front & Rear Oil Hydraulic Disc Brakes + Electronic Power Cut-off Brake Suspension Front: All-Aluminum Inverted Thru-Axle Hydraulic Fork
Rear: Heavy-Duty Coil Shock Absorber (1800 lbs)Tire Specifications 25-Inch Off-Road Motorcycle Tires (70/100-19) Display & Instruments Full-Color LED Digital Display (Speed, Odometer, Trip, Battery Level, Modes, Lights) Lighting & Signals LED Headlight, LED Taillight, and Left/Right Turn Signals Charger Specifications Dual 67.2V / 3A Chargers (Included) Charging Time 5.5 – 6.5 Hours (Dual Charging) Maximum Load Capacity 100 kg / 220 lbs Recommended Rider Age 16+ Years Old Maximum Gradeability > 15° Incline Bike Dimensions (L×W×H) 1875.2 × 730 × 1166.6 mm Net Weight Approx. 54.5 kg / 120.1 lbs Gross Weight Approx. 66.9 – 67.5 kg / 147.5 lbs Package Dimensions 1590 × 320 × 840 mm (159 × 32 × 84 cm) Pallet Packing 6 Pcs / Pallet Certifications & Directives FCC (USA Class B), CE (EU), RoHS 2, European Directive 2006/66/EC
🛠️ Display & Dashboard Error Codes Reference (For FAQ / Tech Support Section)Error Code Diagnostic / Description E02 Brake Switch Failure / Sensor Error E06 Undervoltage Protection (Low Battery) E07 Motor Hall Sensor Failure E08 Motor Phase Line Short Circuit / MOS Tube Failure E09 Controller Failure E10 Controller & Instrument Communication Error E11 Throttle Handle Failure HOT System Overheat Protection
📦 What's in the Box?
- 1× GT73 Pro Electric Dirt Bike Frame & Wheel Assembly
- 2× 60V 18Ah Quick-Release Lithium Battery Packs
- 2× 67.2V / 3A Fast Chargers
- 1× 1800 LBS Heavy-Duty Rear Shock Absorber (Upgrade Unit)
- 1× Assembly Tool Kit & Cable Management Wrap
- 1× User Manual & Quick Start Guide
